Specifications
Features
PRODUCT LINEUP
Viewfinder
Panel
0.5 inch OLED panel, approx. 3.68 M dots (Viewfinder Coverage : approx. 100%)
Magnification
0.83x (50 mm lens at infinity, −1 dpt)
Eye Point
Approx. 21 mm (from the back of the eyepiece lens)
Diopter Adjustment
−4.0 to +3.0 dpt
Angle Adjustment
0 to 90°
Interface
USB Terminal
USB Type-C x2 : Input and output (for portable SSD only)
Video Input Terminal
Dedicated terminal
EVF Detection Terminal
Dedicated terminal
Headphone Output Terminal
Φ3.5 mm stereo mini jack
Dimensions and Weight
Dimensions (W x H x D)
44.6 x 91.7 x 56.1 mm / 1.8 x 3.6 x 2.2 in. (including EYECUP EC-31)
Weight
114 g / 4.0 oz. (including EYECUP EC-31)
Supplied Accessories
EYECUP EC-31, LARGE EYECUP EC-41, Semi-hard Case VC-07A
Specifications
Features
PRODUCT LINEUP
Viewfinder
Panel
0.5 inch OLED panel, approx. 3.68 M dots (Viewfinder Coverage : approx. 100%)
Magnification
0.83x (50 mm lens at infinity, −1 dpt)
Eye Point
Approx. 21 mm (from the back of the eyepiece lens)
Diopter Adjustment
−4.0 to +3.0 dpt
Angle Adjustment
0 to 90°
Interface
USB Terminal
USB Type-C x2 : Input and output (for portable SSD only)
Video Input Terminal
Dedicated terminal
EVF Detection Terminal
Dedicated terminal
Headphone Output Terminal
Φ3.5 mm stereo mini jack
Dimensions and Weight
Dimensions (W x H x D)
44.6 x 91.7 x 56.1 mm / 1.8 x 3.6 x 2.2 in. (including EYECUP EC-31)
Weight
114 g / 4.0 oz. (including EYECUP EC-31)
Supplied Accessories
EYECUP EC-31, LARGE EYECUP EC-41, Semi-hard Case VC-07A
SUpplied Accessories

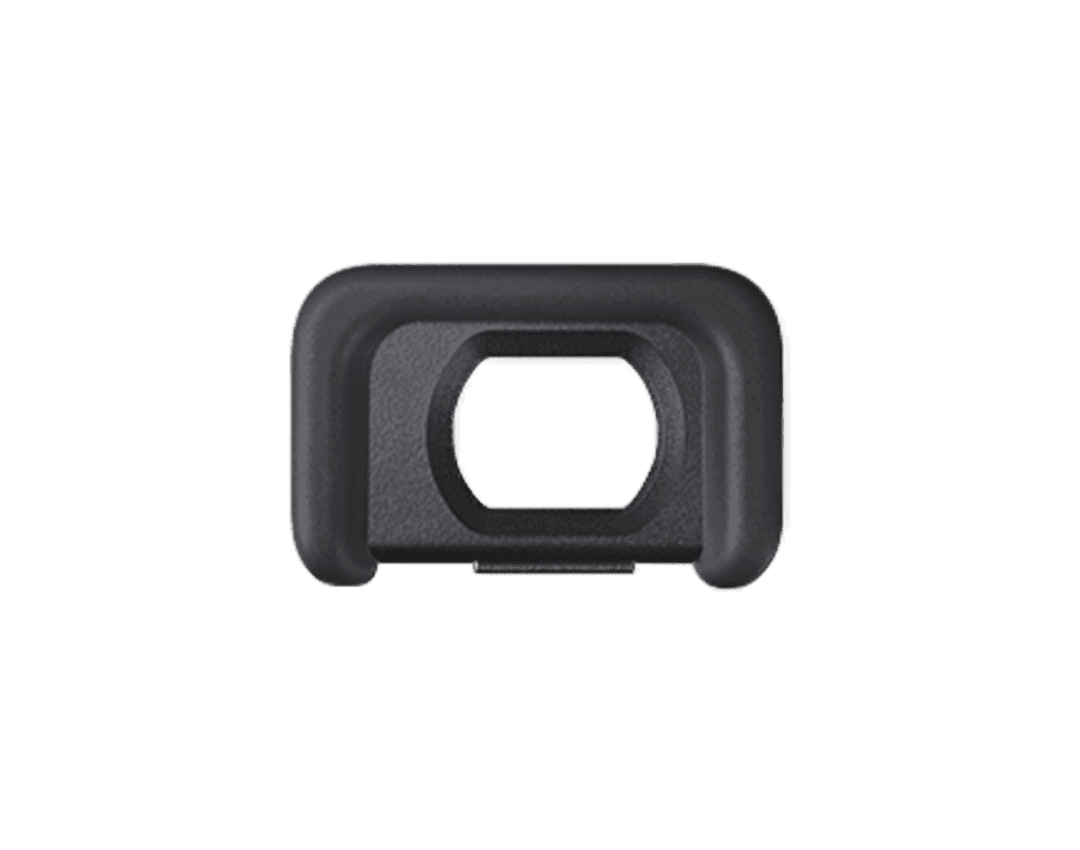

EYECUP : EC-31
LARGE EYECUP : EC-41
Semi-hard case : VC-07A
Separately sold Accessories

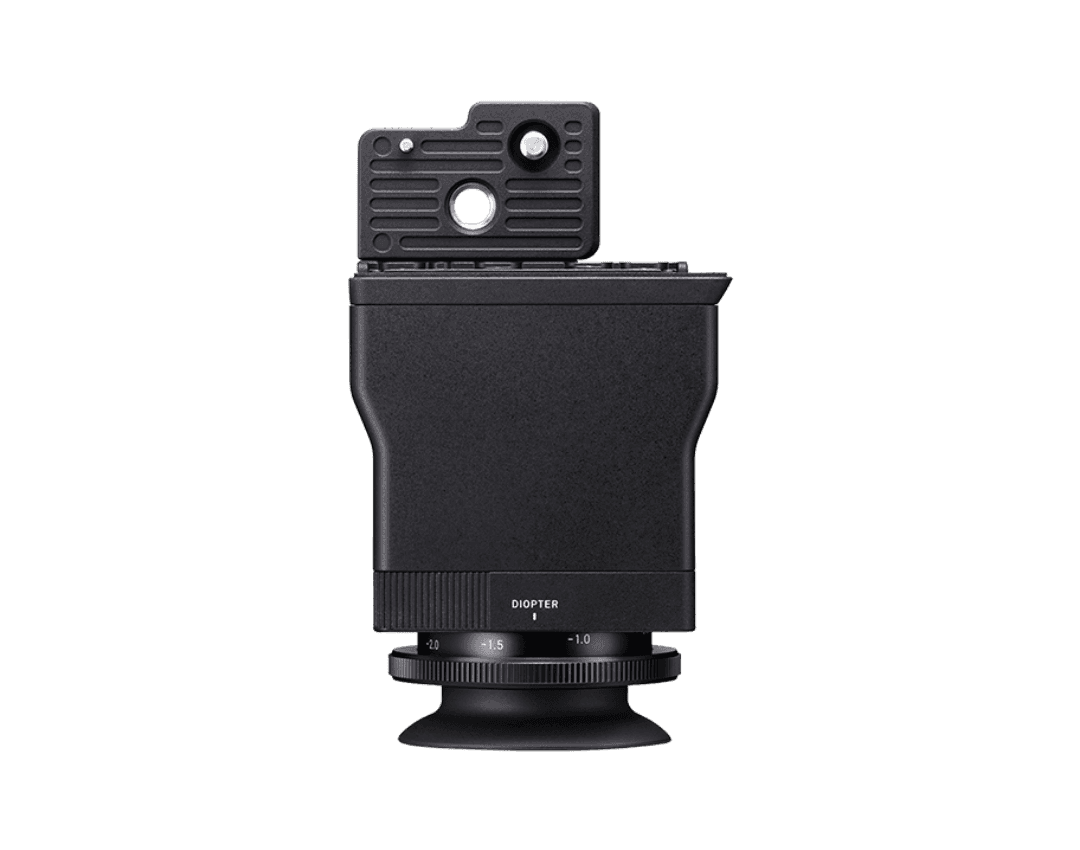

LCD VIEWFINDER LVF-11
